Background

Monitoring the distribution and change in land cover types can help us understand the impacts of phenomena like climate change, natural disasters, deforestation, and urbanization. Determining land cover types over large areas is a major application of remote sensing because we are able to distinguish different materials based on their spectral reflectance.

Classifying remotely sensed imagery into land cover classes enables us to understand the distribution and change in land cover types over large areas.

There are many approaches for performing land cover classification:

  • Supervised approaches use training data labeled by the user
  • Unsupervised approaches use algorithms to create groups which are identified by the user afterward

Task

In this lab, we are using a form of supervised classification – a decision tree classifier.

Decision trees classify pixels using a series of conditions based on values in spectral bands. These conditions (or decisions) are developed based on training data.

In this lab, we will create a land cover classification for southern Santa Barbara County based on multi-spectral imagery and data on the location of 4 land cover types:

  • green vegetation
  • dry grass or soil
  • urban
  • water

To do so, we will need to:

  • Load and process Landsat scene
  • Crop and mask Landsat data to study area
  • Extract spectral data at training sites
  • Train and apply decision tree classifier
  • Plot results

Data

Landsat 5 Thematic Mapper

  • Landsat 5
  • 1 scene from September 25, 2007
  • Bands: 1, 2, 3, 4, 5, 7
  • Collection 2 surface reflectance product

Data files:

  • landsat-data/LT05_L2SP_042036_20070925_20200829_02_T1_SR_B1.tif
  • landsat-data/LT05_L2SP_042036_20070925_20200829_02_T1_SR_B2.tif
  • landsat-data/LT05_L2SP_042036_20070925_20200829_02_T1_SR_B3.tif
  • landsat-data/LT05_L2SP_042036_20070925_20200829_02_T1_SR_B4.tif
  • landsat-data/LT05_L2SP_042036_20070925_20200829_02_T1_SR_B5.tif
  • landsat-data/LT05_L2SP_042036_20070925_20200829_02_T1_SR_B7.tif

Study area

Polygon representing southern Santa Barbara county

Data file: SB_county_south.shp

Training data

Polygons representing sites with training data - type: character string with land cover type

Data file: trainingdata.shp

Data Pre Processing

1. Set up

To train our classification algorithm and plot the results, we’ll use the rpart and rpart.plot packages.

install.packages("rpart")
install.packages("rpart.plot")

Let’s load all necessary packages:

library(sf) # vector data
library(terra) # raster data
library(here) # file path management
library(tidyverse)
library(rpart) # recursive partitioning and regression trees
library(rpart.plot) # plotting for rpart
library(tmap) # map making

2. Load Landsat data

Let’s create a raster stack. Each file name ends with the band number (e.g. B1.tif).

  • Notice that we are missing a file for band 6
  • Band 6 corresponds to thermal data, which we will not be working with for this lab

To create a raster stack, we will create a list of the files that we would like to work with and read them all in at once using the terra::rast() function. We’ll then update the names of the layers to match the spectral bands and plot a true color image to see what we’re working with.

# list files for each band, including the full file path
filelist <- list.files(here::here("data", "landsat-data"), full.names = TRUE)

# read in and store as a raster stack
landsat <- rast(filelist)

# update layer names to match band
names(landsat) <- c("blue", "green", "red", "NIR", "SWIR1", "SWIR2")

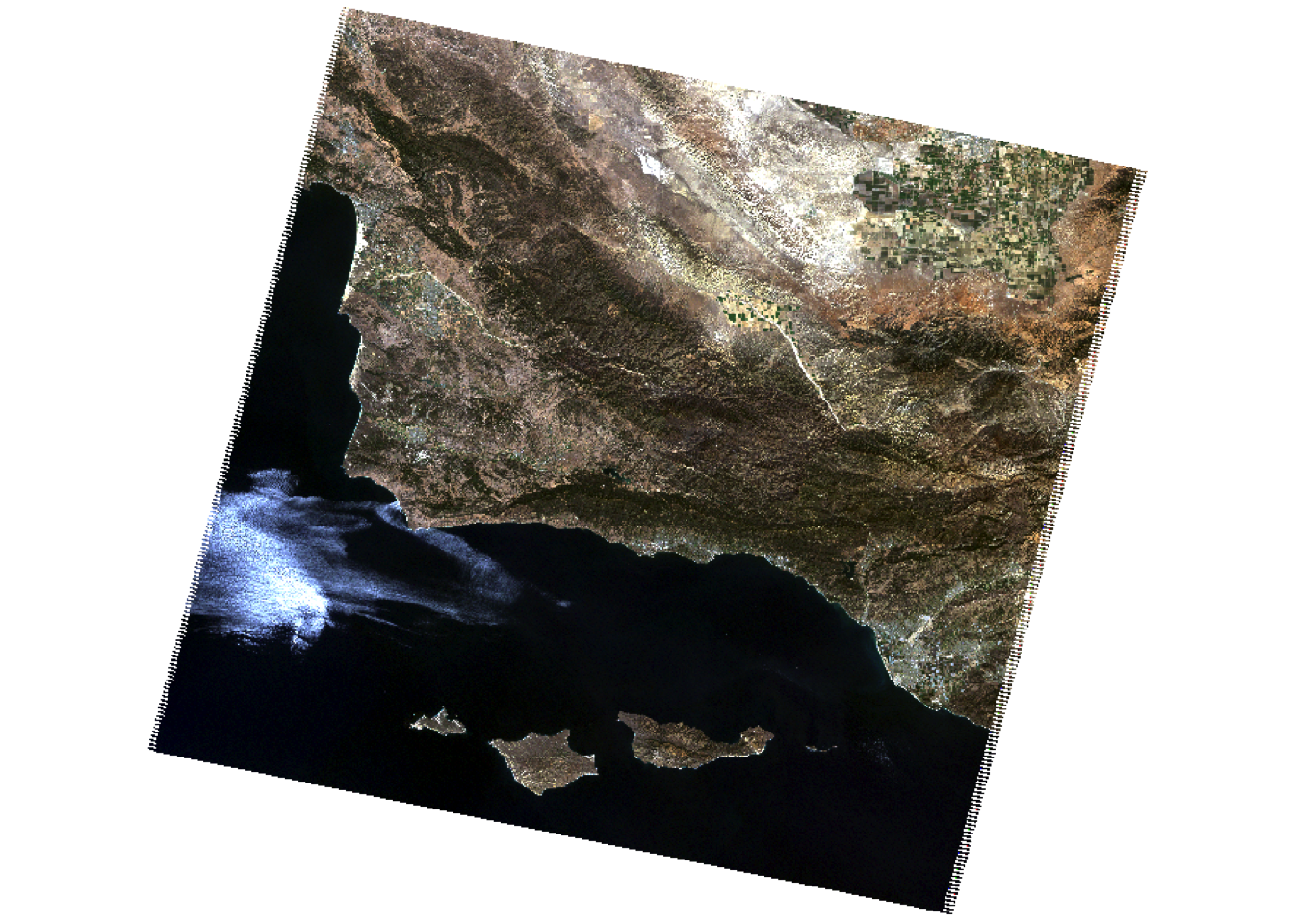

# plot true color image
plotRGB(landsat, r = 3, g = 2, b = 1, stretch = "lin")

3. Load study area

We want to constrain our analysis to the southern portion of the county where we have training data, so we’ll read in a file that defines the area we would like to study.

# read in shapefile for southern portion of SB county
SB_county_south <- st_read(here::here("data", "SB_county_south.shp")) %>%
      st_transform(SB_county_south, crs = crs(landsat))
Code
tm_shape(SB_county_south) +
  tm_borders()

4. Crop and mask Landsat data to study area

Now, we can crop and mask the Landsat data to our study area.

  • Why? This reduces the amount of data we’ll be working with and therefore saves computational time
  • Bonus: We can also remove any objects we’re no longer working with to save space
# crop Landsat scene to the extent of the SB county shapefile
landsat_cropped <- crop(landsat, SB_county_south)

# mask the raster to southern portion of SB county
landsat_masked <- mask(landsat_cropped, SB_county_south)

# remove unnecessary object from environment
rm(landsat, SB_county_south, landsat_cropped)

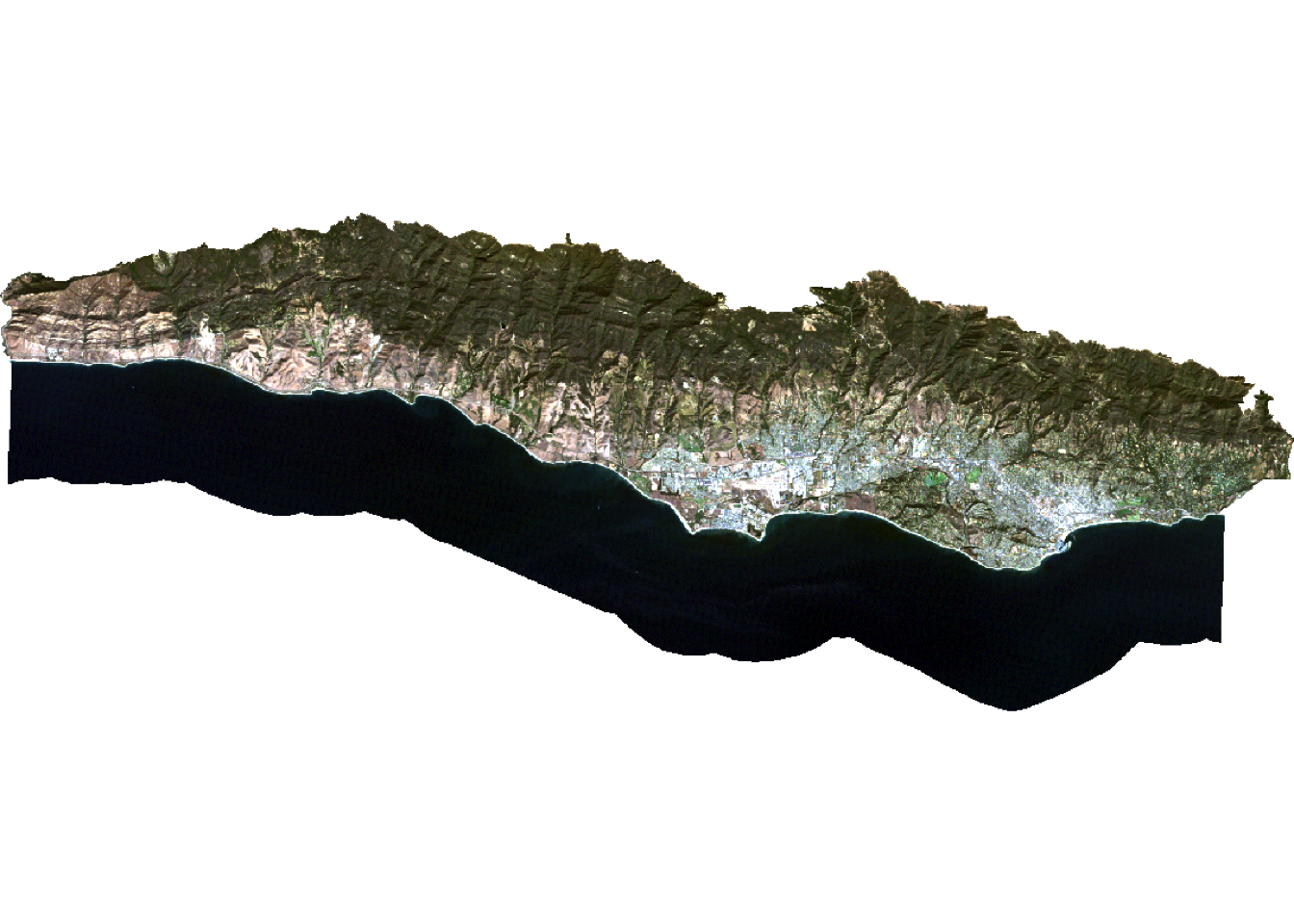

plotRGB(landsat_masked, r = 3, g = 2, b = 1, stretch = "lin")

5. Convert Landsat values to reflectance

Now we need to convert the values in our raster stack to correspond to reflectance values. To do so, we need to remove erroneous values and apply any scaling factors to convert to reflectance.

In this case, we are working with Landsat Collection 2.

  • The valid range of pixel values for this collection goes from 7,273 to 43,636…
    • with a multiplicative scale factor of 0.0000275
    • with an additive scale factor of -0.2

Find other scale factors and additive offsets for Landsat Level-2 science products here!

Let’s reclassify any erroneous values as NA and update the values for each pixel based on the scaling factors. Now the pixel values should range from 0-100%!

# reclassify erroneous values as NA
rcl <- matrix(c(-Inf, 7272, NA,
                 43637, Inf, NA), ncol = 3, byrow = TRUE)

landsat <- classify(landsat_masked, rcl = rcl)

# adjust values based on scaling factor
landsat <- (landsat * 0.0000275 - 0.2) * 100

# check values are 0 - 100
summary(landsat)
      blue            green             red              NIR
 Min.   : 1.106   Min.   : 0.743   Min.   : 0.004   Min.   : 0.232
 1st Qu.: 2.490   1st Qu.: 2.173   1st Qu.: 1.084   1st Qu.: 0.749
 Median : 3.064   Median : 4.588   Median : 4.447   Median :14.394
 Mean   : 3.833   Mean   : 5.017   Mean   : 4.920   Mean   :11.515
 3rd Qu.: 4.626   3rd Qu.: 6.758   3rd Qu.: 7.404   3rd Qu.:19.341
 Max.   :39.425   Max.   :53.321   Max.   :56.684   Max.   :57.080
 NA's   :39856    NA's   :39855    NA's   :39855    NA's   :39856
     SWIR1            SWIR2
 Min.   : 0.097   Min.   : 0.199
 1st Qu.: 0.410   1st Qu.: 0.600
 Median :13.432   Median : 8.155
 Mean   :11.877   Mean   : 8.516
 3rd Qu.:18.695   3rd Qu.:13.066
 Max.   :49.132   Max.   :48.068
 NA's   :42892    NA's   :46809

Supervised Classification

1. Training classifier

Let’s begin by extracting reflectance values for training data!

We will load the shapefile identifying locations within our study area as containing one of our 4 land cover types.

# read in and transform training data
training_data <- st_read(here::here( "data", "trainingdata.shp")) %>%
  st_transform(., crs = crs(landsat))

Now, we can extract the spectral reflectance values at each site to create a data frame that relates land cover types to their spectral reflectance.

# extract reflectance values at training sites
training_data_values <- terra::extract(landsat, training_data, df = TRUE)


# convert training data to data frame
training_data_attributes <- training_data %>%
  st_drop_geometry()

# join training data attributes and extracted reflectance values
SB_training_data <- left_join(training_data_values, training_data_attributes,
                              by = c("ID" = "id")) %>%
                    mutate(type = as.factor(type)) # convert landcover type to factor

Next, let’s train the decision tree classifier!

To train our decision tree, we first need to establish our model formula (i.e. what our response and predictor variables are).

  • The rpart() function implements the CART algorithm
  • The rpart() function needs to know the model formula and training data you would like to use
  • Because we are performing a classification, we set method = "class"
  • We also set na.action = na.omit to remove any pixels with NAs from the analysis.
# establish model formula
SB_formula <- type ~ red + green + blue + NIR + SWIR1 + SWIR2

# train decision tree
SB_decision_tree <- rpart(formula = SB_formula,
                          data = SB_training_data,
                          method = "class",
                          na.action = na.omit)

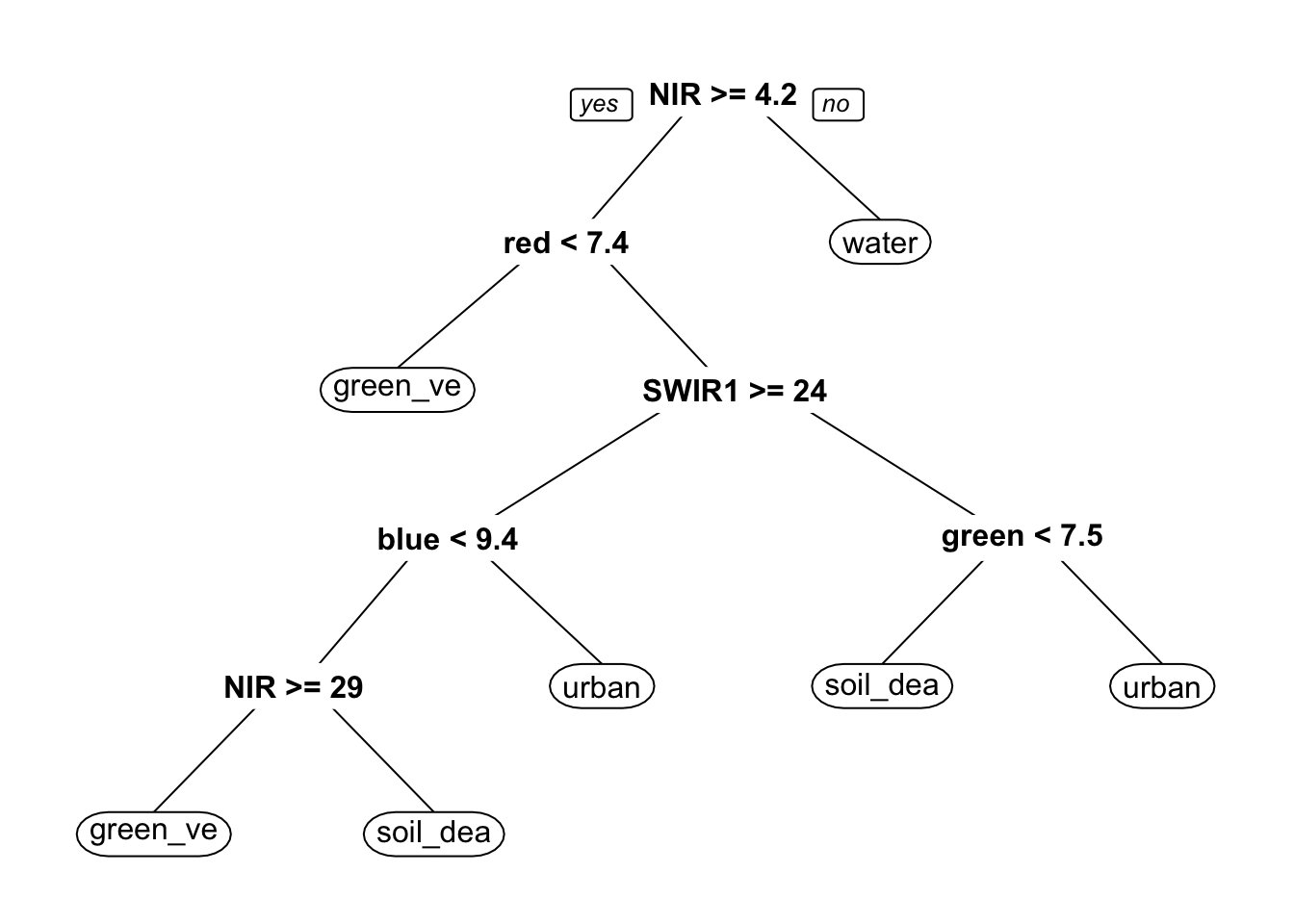

To understand how our decision tree will classify pixels, we can plot the results!

TipInterpreting decision trees

Note: The decision tree is comprised of a hierarchy of binary decisions. Each decision rule has 2 outcomes based on a conditional statement pertaining to values in each spectral band.

Code
# plot decision tree
prp(SB_decision_tree)

2. Classify image

Now that we have a rule set for classifying spectral reflectance values into landcover types, we can apply the classifier to identify the landcover type in each pixel.

The terra package includes a predict() function that allows us to apply a model to our data. In order for this to work properly, the names of the layers need to match the column names of the predictors we used to train our decision tree. The predict() function will return a raster layer with integer values. These integer values correspond to the factor levels in the training data. To figure out what category each integer corresponds to, we can inspect the levels of our training data.

# classify image based on decision tree
SB_classification_dt <- terra::predict(landsat, SB_decision_tree, type = "class", na.rm = TRUE)

# inspect level to understand the order of classes in prediction
levels(SB_training_data$type)
[1] "green_vegetation" "soil_dead_grass"  "urban"            "water"

3. Plot results

Now we can plot the results and check out our land cover map!

Code
# plot results
dt_plot <- tm_shape(SB_classification_dt) +
  tm_raster(
    col.scale = tm_scale(
      values = c("#8DB580", "#F2DDA4", "#7E8987", "#6A8EAE"),
      labels = c("green vegetation", "soil/dead grass", "urban", "water")
    ),
    col.legend = tm_legend("Landcover type")
  ) +
  tm_title(text = "Decision Tree Landcover Classification") +
  tm_layout( legend.position = c("left", "bottom"))

dt_plot

Unsupervised

There are many approaches for performing land cover classification! We just saw an example of a supervised classification - decision trees! To build the decision tree, we provided training data that was labeled by the user. But remember, our data might not always be labeled! We will see this scenario through now with a k means algorithm, where we provided unlabeled data that the algorithm will put into groups for us. At the end, we must figure out which group is which landcover type.

We already processed our landsat data by cropping/masking to our area of interest and converting the values to reflectance. Now it’s time to jump into the classifying!

1. Convert raster data to a dataframe and scale

The first step is to prepare our data for k-means clustering. Unlike the decision tree which can work directly with raster objects, k-means requires our data to be in a dataframe format. We’ll extract the spectral band values for each pixel and then scale them. Scaling is critical for k-means because the algorithm measures distances between pixels - if one band has much larger values than another, it would dominate the clustering. Scaling puts all bands on the same scale so each contributes equally.

# Convert raster to dataframe
landsat_df <- as.data.frame(landsat, xy = TRUE, na.rm = TRUE)

# Extract spectral bands for clustering
spectral_data <- landsat_df[, c("blue", "green", "red", "NIR", "SWIR1", "SWIR2")]

# Scale the data
spectral_data_scaled <- scale(spectral_data)

2. Classify using K means algorithm

Now we’re ready to run the k-means algorithm! We specify centers = 4 because we want to find 4 groups (matching our 4 landcover types). The nstart = 25 parameter tells the algorithm to try 25 different random starting positions and pick the best result - this helps avoid getting stuck in a poor solution. K-means works by iteratively grouping pixels with similar spectral signatures together until it finds stable clusters.

Unlike the decision tree, k-means has no idea what “water” or “green vegetation” looks like - it’s just finding natural groupings in the spectral data!

# Set seed for reproducibility
set.seed(223)

# Perform k-means with k=4
kmeans_result <- kmeans(spectral_data_scaled, centers = 4, nstart = 25)

# Add cluster assignments to dataframe
landsat_df$cluster <- kmeans_result$cluster

3. Convert data back to raster and add cluster assignments to dataframe.

The k-means algorithm has now assigned each pixel to one of 4 clusters (numbered 1-4). To visualize our results on a map, we need to convert these cluster assignments back into a raster format. We’ll create an empty raster with the same dimensions as our original Landsat data, then fill it with the cluster numbers.

# Convert back to raster
SB_classification_kmeans <- rast(landsat[[1]])
values(SB_classification_kmeans) <- NA
cells <- cellFromXY(SB_classification_kmeans, landsat_df[, c("x", "y")])
values(SB_classification_kmeans)[cells] <- landsat_df$cluster

4. Figure out what our clusters represent!

Here’s where unsupervised classification gets interesting - we have 4 clusters, but we don’t know which is which! The algorithm just labeled them 1, 2, 3, and 4. We need to examine the spectral characteristics of each cluster to determine what landcover type each represents.

We’ll calculate the mean reflectance values for each band within each cluster. By looking at these patterns, we can identify clusters:

  • High NIR, low red → likely green vegetation (healthy plants reflect NIR strongly)
  • Low NIR, high blue → likely water (water absorbs NIR)
  • High values across all bands → likely soil/dead grass (high overall reflectance)
  • Moderate values → likely urban areas
Code
# Look at cluster characteristics to determine landcover type
landsat_df %>%
  group_by(cluster) %>%
  summarise(
    blue = mean(blue),
    green = mean(green),
    red = mean(red),
    NIR = mean(NIR),
    SWIR1 = mean(SWIR1),
    SWIR2 = mean(SWIR2),
    n_pixels = n()
  ) %>%
  arrange(cluster) %>%
  knitr::kable(digits = 2,
               caption = "Mean Spectral Values by Cluster")
Mean Spectral Values by Cluster
cluster blue green red NIR SWIR1 SWIR2 n_pixels
1 8.61 12.18 14.28 21.46 29.20 22.33 68205
2 5.67 8.24 9.24 20.10 22.01 15.47 182886
3 3.36 5.04 5.09 17.69 14.71 8.65 297407
4 2.51 2.27 1.14 1.04 0.51 0.48 250431
Code
# Set category labels

levels(SB_classification_kmeans) <- data.frame(
  ID = 1:4,
  landcover = c("soil/dead grass", "urban", "green vegetation", "water")
)

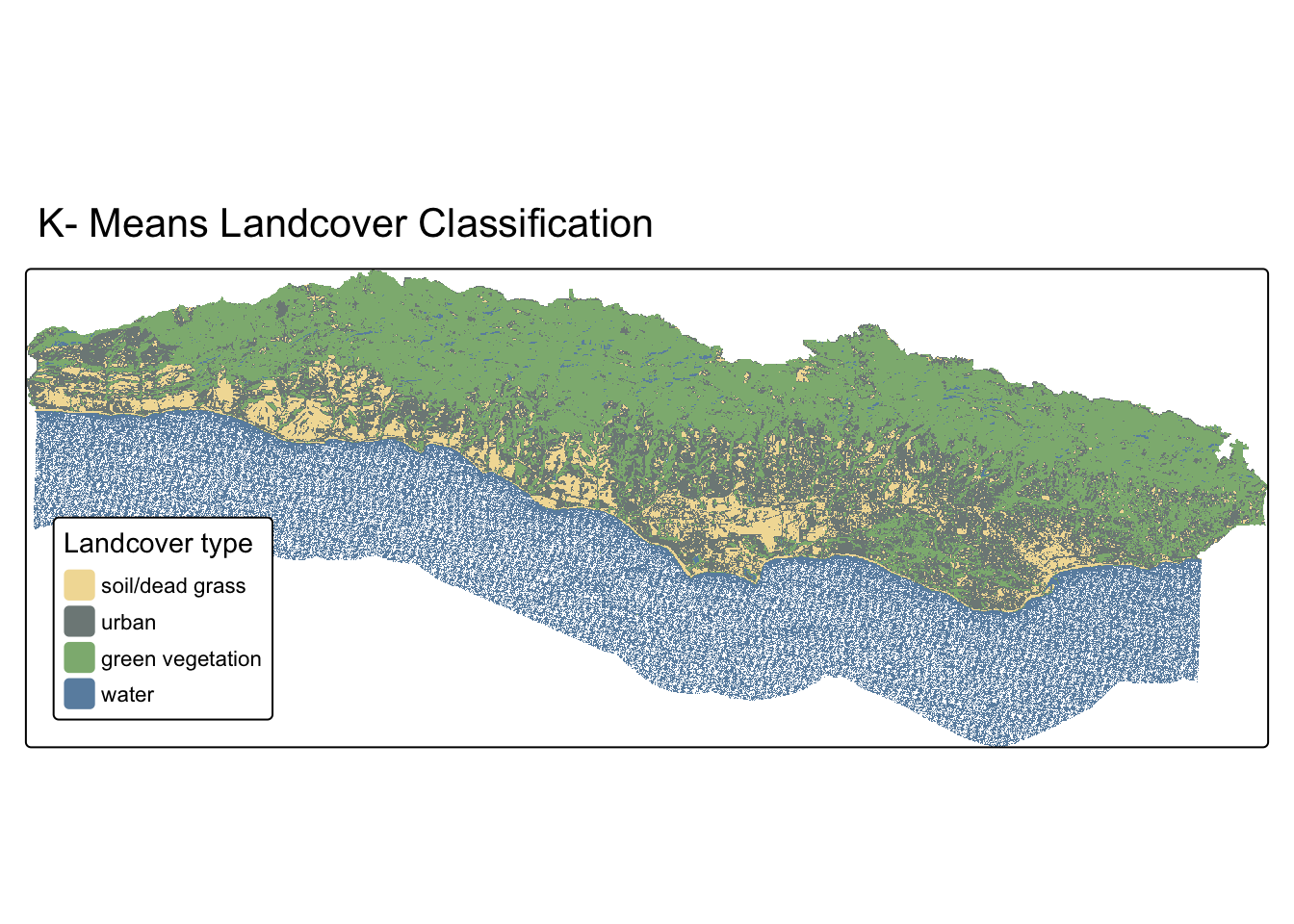

5. Plot Results

Now we can plot the results and check out our land cover map!

Code
# plot results
kmeans_plot <- tm_shape(SB_classification_kmeans) +
  tm_raster(
    col.scale = tm_scale(
      values = c("#F2DDA4","#7E8987",  "#8DB580","#6A8EAE"),
      labels = c("soil/dead grass", "urban", "green vegetation", "water")
    ),
    col.legend = tm_legend("Landcover type")
  ) +
  tm_title(text = "K- Means Landcover Classification") +
  tm_layout(legend.position = c("left", "bottom"))

kmeans_plot

6. Compare our decision tree and kmeans algorithm classification

Now let’s compare our two approaches side-by-side! The decision tree used labeled training data to learn classification rules, while k-means found natural groupings without any training.

tmap_arrange(dt_plot, kmeans_plot, nrow = 1)
